Rotary drilling rig-training simulator

       Advantages of comparing simulator and real machine training

 Save fuel emissions

 Avoid safety incidents

 Reduce insurance costs

 Save on repairs and maintenance

 No venue restrictions

 not affected by weather

 Learn more efficiently

 Repeated and continuous use

     Existing categories of simulators (software, appearance can be customized and developed)

 crawler excavator

 wheeled excavator

 Walking excavator

 Wheel loaders

 Backhoe Loader

 roller

 bulldozer

 Grader

 Crane

 crawler crane

 All terrain crane

 Rotary drill

 Mining heavy truck

 Mining electric shovel

 Erecting machine

 shield machine

 car driving

 agricultural tractor

 Welding simulator

 Continuous wall grab

 paver

 dump truck

 forklift

                       Rotary drilling rig simulator

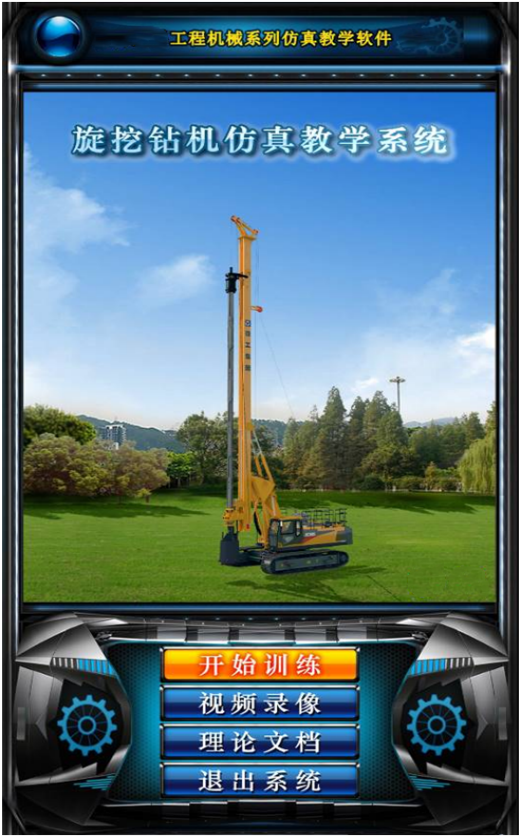

                         Software overview

name

Features

main feature

It complies with the latest rotary drilling rig driver training syllabus and is equipped with the latest 3rd generation " rotary drilling rig simulation system" version.

software model

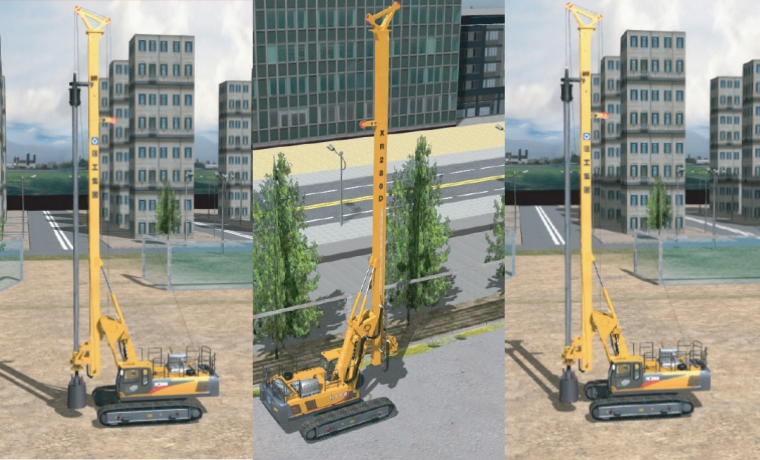

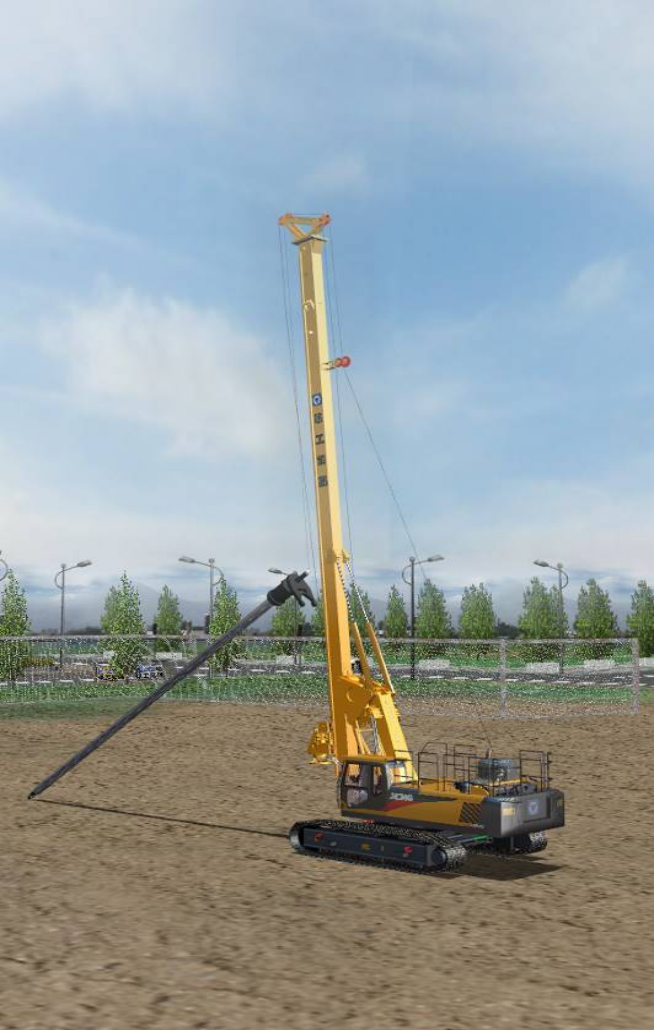

The software model uses a rotary drilling rig as the prototype to design and develop a 3D model with a real scale of 1:1.

real-time

During operation, a realistic three-dimensional scene corresponding to the operation is displayed on the video and accompanied by corresponding voice prompts.

perspective

You can switch between the first and third person perspectives at will, and can adjust up, down, left, and right.

Error message

The topic contains a large number of real-time error prompts, including text prompts, voice prompts, screen flashing red, etc. Help students correct illegal operations and wrong actions in a timely manner;

theoretical learning model

Realize written and video learning functions, including real machine structure, use, maintenance, repair, etc.

Theoretical assessment mode

It has standardized assessment of theoretical test questions, and customers can add test questions by themselves to realize random question setting, automatic judging, and automatic scoring functions.

Video teaching

It mainly realizes the video display of the actual machine operation of a certain type of crawler excavator, and realizes the understanding of real machine driving, real machine operation, real machine operation and other interactive operations, and cooperates with voice and text introduction.

Data access

It assists students in their understanding of real equipment and allows them to learn and master relevant knowledge about maintenance and troubleshooting while driving, operating and operating real machines.

Port docking (optional items required)

The system supports VR peripheral equipment connection ports, which can be used for immersive virtual operations, virtual collaboration and other training courses, and can meet a variety of trainings such as stand-alone and networked collaboration. The system reserves other software interfaces, which can be used to connect to the compatibility and optimization functions of subsequent simulation software such as disassembly, assembly, and maintenance.

training topics

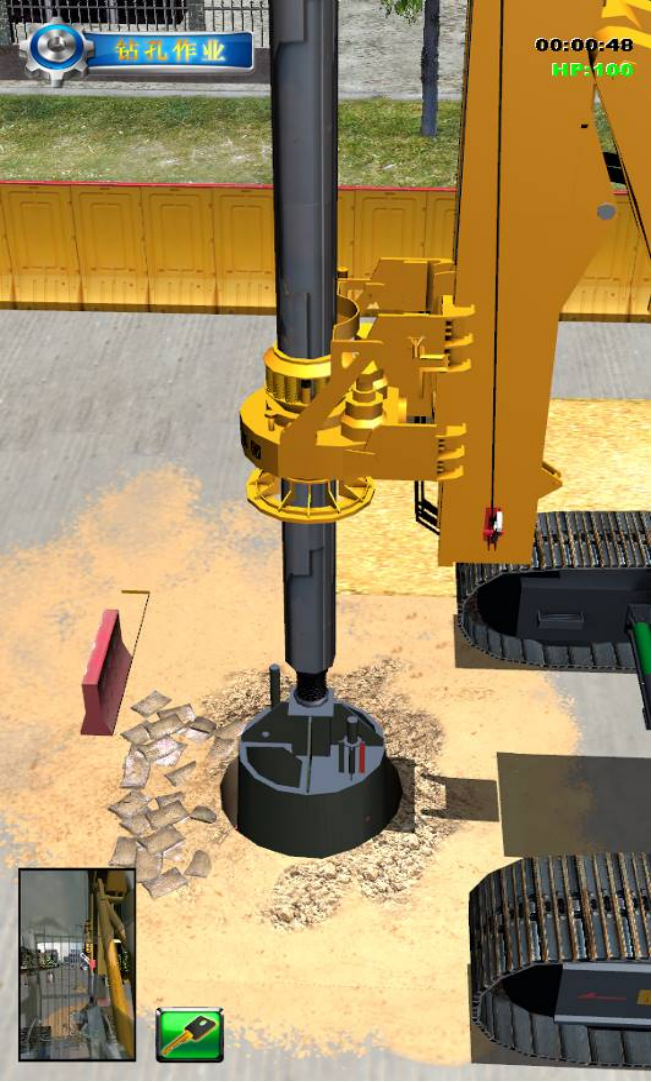

• Idle action, hanging and placing drill pipes, drilling operations, single assessment and comprehensive assessment.




• Entertainment mode: traveling through the maze




• Assessment module: The working condition simulation scenarios in the software are consistent with the actual and real machine working scenarios.

Training environment settings

You can choose simulated weather for simulation training and assessment operations. Weather options include sunny days, rainy days, snowy days, strong winds, and heavy fog. Simulation time period options include morning, noon, evening, and night;

Project demonstration

l  You can freely choose topics to enter operation training, which is flexible and convenient. Operators can choose training according to their professional weaknesses.

l  The working scenes are rich and colorful, restoring the real working environment and reducing visual fatigue during simulation training.

lWorking  environment

lIn  order to improve the operator's environmental adaptability, you can choose extreme environment training such as darkness and snow.

lSwitching  various viewing angles

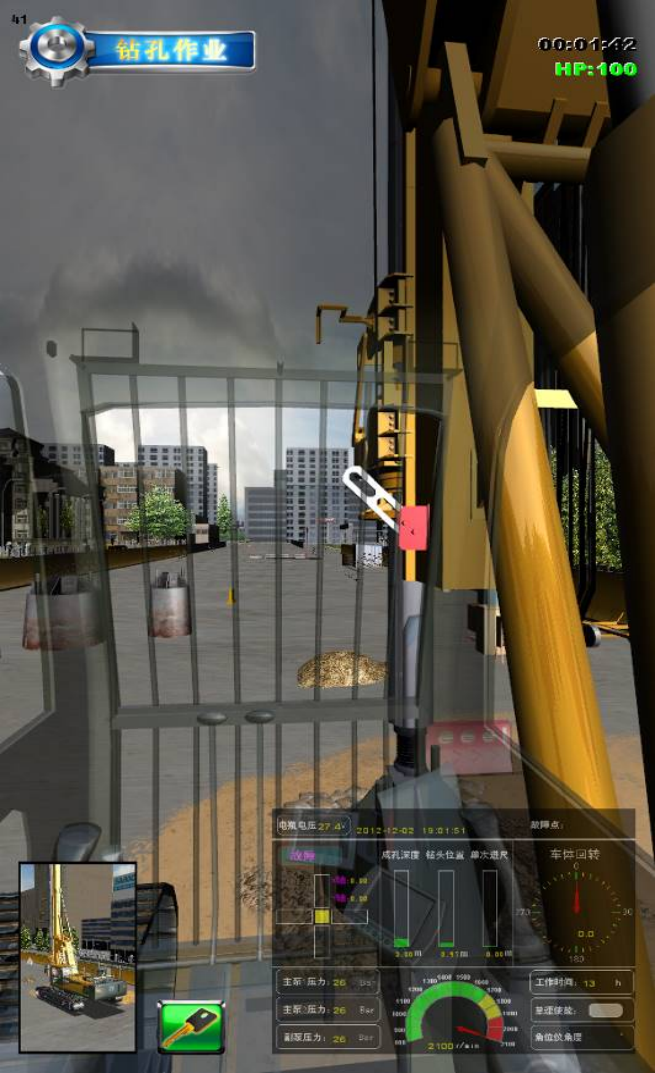

In order to facilitate the operator to observe the movement specifications in real time, various viewing angles inside and outside the cab can be switched at will.

lTheoretical  assessment

The function of the assessment topic is to allow the operator to evaluate the operator's shortcomings in theoretical knowledge such as maintenance and troubleshooting, and then conduct targeted training to improve more professional skills.

                     Hardware system overview

name

Specifications

display system

l  50-inch brand high-definition LCD monitor (optional) brand

Resolution :  3840*2160, 8.29 million pixels, 1 2bit true color

lEnergy  efficiency level : Level 1

lType  : LED TV

lRefresh  rate : 60Hz

lScreen  ratio : 16:9

lOperating  system : Android

lScreen  size : 50 inches

lForm  : Tablet

computer

Brand computer (satisfied with software usage)

lCPU  : Intel/I7

lMemory  : 8G

lHard  drive: solid state drive 512G

l  Graphics card: GTX1660

l  6G video memory

lMotherboard  structure: M-ATX

lOptical  drive type: no optical drive

lPower  supply 80 PLUS

lHeating  method: air cooling

lPower  power: 250WCPU

seat

lSpecial  for construction machinery, can be adjusted forward and backward, and the backrest angle can be adjusted

lWeight  and volume: 32KG 0.35m³

lFabric  : Black thickened brushed microfiber leather

lFilling  : cold-cured polyurethane high resilience sponge

lBackrest  angle: seat-back angle 45° -178°

    Front and rear travel 170mm

    Base size 315mm-295mm-215mm

    Seat size 900mm-550mm-610mm

Highly integrated data circuit board

lPower  supply voltage 5V

lWorking  current <30A

lUSB  interface

l50  %Vcc

l  7.5mV/mT~20mV/mT sensitivity

lOutput  voltage low end <1.0V

lOutput  voltage high end>4.2V

Control System

• It adopts the same push-down operation method as the real machine, with stable performance and strong durability; the sensor uses an advanced Hall sensor, which uses the difference in the strength of the magnetic field to achieve a stable analog quantity for handle operation, which is consistent with the real machine operation feel and software. The actions implemented in are completely consistent.

 l The walking control pedals are customized with parts that have the same appearance as the real machine, ensuring that the students’ operating experience on the machine is completely consistent with the operating effect of the real machine.

operating system.function

lPush button switch, independently developed.

lFunction combination control button components include: membrane switch function key and power on/off function key. The membrane switch panel consists of switching keys, viewing angle switching keys, speed adjustment keys, and subject exit keys.

lThe on/off function key can turn on/off the computer host function.

Cockpit parameters (optional with multiple appearances, colors and customer customization)

l   In line with the principles and appearance of engineering machinery, the appearance is atmospheric and beautiful, with a strong sense of science and technology, and a real sense of . The cockpit experience is highly consistent with the real cab, in line with ergonomics, mechanics, and the best visual effects. The platform is easy to move and is made of metal. , sturdy and durable, suitable for many uses.

l  Equipped with multiple heavy- duty universal rollers with built-in brake locks and a maximum load capacity of  1000kg. The rubber wheel body is silent and noise-reducing, making it easy to move and transport.

lThe  chassis has mesh cooling ventilation holes, which has good heat dissipation characteristics.

lMaterial  : Steel Specification : Q235

Thickness: 5mm/3mm2.5mm/1.5mm

1. Multi-model joint collaborative operation

Multi-machine collaborative operation system

(optional)

lA  comprehensive system based on the integration of multiple simulator models for multiple or single operation training under unified tasks and scenarios.

l  It uses  virtual  to simulate actual work and training scenarios, so as to achieve the purpose of integrating multiple functional modules and conducting virtual operation training of the entire equipment. It allows the operator to experience various operation methods and the joint operation process of multiple equipments.

Collaborative work topics:

Rescue missions: landslides, barrier lakes, mudslides,

Tunnel collapse, earthquake rescue and other issues.

Common tasks: excavation and loading, dual-machine crane, road leveling and other tasks.

2. Multi- degree-of-freedom vibration platform

Overview of the degree-of-freedom vibration platform system

(optional)

The l  -degree-of-freedom vibration table  realizes multi-degree-of-freedom motion in the platform space (vertical, transverse, longitudinal, roll, pitch, and rocking) by changing the telescopic strokes of three or more actuators, as well as composite motion around these degrees of freedom.

l  Linkage is performed based on the movement trajectory of the simulator operation, allowing the trainer to experience the vibration and bumps of the real machine, making the experience more realistic, guiding the trainer into the real state, increasing muscle memory, and quickly mastering training skills.

3. Helmet-mounted VR  immersive system

VR  system overview (optional)

l  The VR helmet display seals people's vision and hearing, producing virtual hearing and vision. At the same time, it connects data to operate physical objects to seal the user's touch channel, producing a virtual sense of touch.

lAt  the same time, the head, hands, and eyes are all tracked by corresponding head trackers, hand trackers, and eye gaze trackers, making the system as real-time as possible.

l  Immersive system is an ideal model for replacing the real environment. It is a virtual environment with the latest interactive means.
