名字

特征

主要特点

它符合最新的门式起重机驾驶员培训大纲，并配备了最新的第三代“门式起重机模拟系统”。

软件模型

软件模型以龙门起重机为原型，设计开发真实比例为1：1的三维模型。

实时

在操作过程中，视频上会显示与操作相对应的逼真的三维场景，并伴有相应的语音提示。

透视

您可以随意在第一人称和第三人称视角之间切换，并可以向上、向下、向左和向右调整。

错误信息

该主题包含大量实时错误提示，包括文本提示、语音提示、屏幕闪烁红色等。帮助学生及时纠正违法操作和错误行为;

理论学习模型

实现文字和视频学习功能，包括实机结构、使用、维护、维修等。

理论评估模式

具有理论试题标准化考核功能，客户可自行添加试题，实现随机题目设置、自动评审、自动评分功能。

视频教学

主要实现门式起重机实机操作的视频展示，实现实机驱动、实机操作、实机操作等交互操作的理解，配合语音和文字介绍。

数据访问

它帮助学生了解真实设备，并让他们在驾驶、操作和操作真实机器时学习和掌握有关维护和故障排除的相关知识。

端口对接（需选件）

系统支持VR外设设备连接端口，可用于沉浸式虚拟操作、虚拟协作等培训课程，可满足单机、网络协作等多种培训。系统预留了其他软件接口，可用于连接后续仿真软件的兼容性和优化功能，如拆卸、组装、维护等。

培训主题

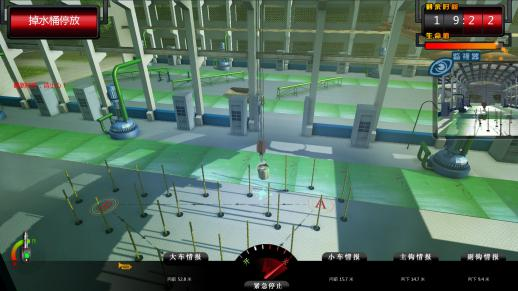

• 大车前后行走，小车前后行走，主副钩升降，基本驱动，定点配送，

  训练主题，如停放水桶、通过弯曲的框架卡车和抓木头。

• 考核模块：大车前后行走、小车前后行走、主副吊钩吊装、基本驾驶、定点配送、

  对停车铲斗、弧形框架托盘搬运车、抓木等培训主题进行综合评估。

训练环境设置

您可以选择模拟天气进行模拟训练和评估操作。天气选项包括晴天、雨天、下雪天、强风和大雾。模拟时间段选项包括早上、中午、晚上和晚上;

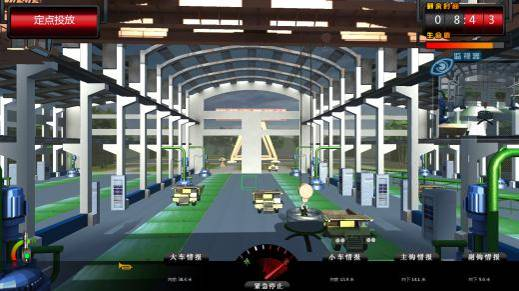

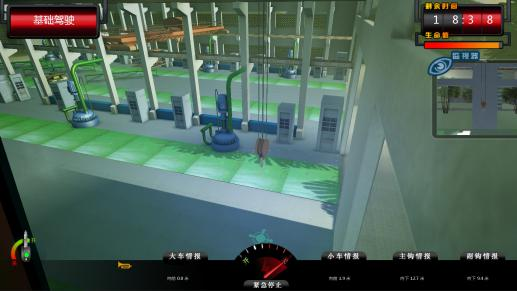

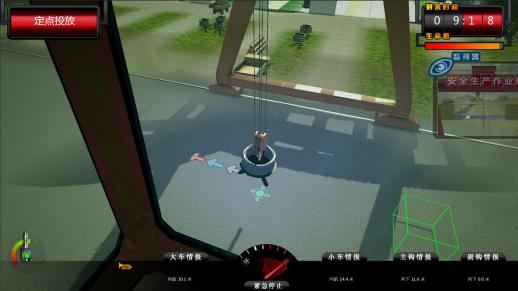

项目示范

l 工作场景丰富多彩，还原真实工作环境，减少模拟训练时的视觉疲劳。

lWorking  environment

lReal  and dynamic environment

Each work scene is a different reference object, which makes people feel immersed in the training and increases the interest of training.

lTheoretical  assessment

The function of the assessment topic is to allow the operator to evaluate the operator's shortcomings in theoretical knowledge such as maintenance and troubleshooting, and then conduct targeted training to improve more professional skills.

name

Specifications

display system

l  50-inch brand high-definition LCD monitor (optional) brand

Resolution :  3840*2160, 8.29 million pixels, 1 2bit true color

lEnergy  efficiency level : Level 1

lType  : LED TV

lRefresh  rate : 60Hz

lScreen  ratio : 16:9

lOperating  system : Android

lScreen  size : 50 inches

lForm  : Tablet

computer

Brand computer (satisfied with software usage)

lCPU  : Intel/I7

lMemory  : 8G

lHard  drive: solid state drive 512G

l  Graphics card: GTX1660

l  6G video memory

lMotherboard  structure: M-ATX

lOptical  drive type: no optical drive

lPower  supply 80 PLUS

lHeating  method: air cooling

lPower  power: 250WCPU

seat

lSpecial  for construction machinery, can be adjusted forward and backward, and the backrest angle can be adjusted

lWeight  and volume: 32KG 0.35m³

lFabric  : Black thickened brushed microfiber leather

lFilling  : cold-cured polyurethane high resilience sponge

lBackrest  angle: seat-back angle 45° -178°

    Front and rear travel 170mm

    Base size 315mm-295mm-215mm

    Seat size 900mm-550mm-610mm

Highly integrated data circuit board

lPower  supply voltage 5V

lWorking  current <30A

lUSB  interface

l50  %Vcc

l  7.5mV/mT~20mV/mT sensitivity

lOutput  voltage low end <1.0V

lOutput  voltage high end>4.2V

Control System

• It adopts the same push-down operation method as the real machine, with stable performance and strong durability; the sensor uses an advanced Hall sensor, which uses the difference in the strength of the magnetic field to achieve a stable analog quantity for handle operation, which is consistent with the real machine operation feel and software. The actions implemented in are completely consistent.

 l The walking control pedals are customized with parts that have the same appearance as the real machine, ensuring that the students’ operating experience on the machine is completely consistent with the operating effect of the real machine.

operating system.function

lPush button switch, independently developed.

lFunction combination control button components include: membrane switch function key and power on/off function key. The membrane switch panel consists of switching keys, viewing angle switching keys, speed adjustment keys, and subject exit keys.

lThe on/off function key can turn on/off the computer host function.

Cockpit parameters (optional with multiple appearances, colors and customer customization)

l   In line with the principles and appearance of engineering machinery, the appearance is atmospheric and beautiful, with a strong sense of science and technology, and a real sense of . The cockpit experience is highly consistent with the real cab, in line with ergonomics, mechanics, and the best visual effects. The platform is easy to move and is made of metal. , sturdy and durable, suitable for many uses.

l  Equipped with multiple heavy- duty universal rollers with built-in brake locks and a maximum load capacity of  1000kg. The rubber wheel body is silent and noise-reducing, making it easy to move and transport.

lThe  chassis has mesh cooling ventilation holes, which has good heat dissipation characteristics.

lMaterial  : Steel Specification : Q235

Thickness: 5mm/3mm2.5mm/1.5mm

VR  system overview (optional)

l  The VR helmet display seals people's vision and hearing, producing virtual hearing and vision. At the same time, it connects data to operate physical objects to seal the user's touch channel, producing a virtual sense of touch.

lAt  the same time, the head, hands, and eyes are all tracked by corresponding head trackers, hand trackers, and eye gaze trackers, making the system as real-time as possible.

l  Immersive system is an ideal model for replacing the real environment. It is a virtual environment with the latest interactive means.
